1U 19-inch 96 Ports LC Fiber Distribution Panel

中国 Shenzhen Unifiber Technology Co.,Ltd 認証
中国 Shenzhen Unifiber Technology Co.,Ltd 認証
オンラインです

1U 19-inch 96 Ports LC Fiber Distribution Panel

1U 19-inch 96 Ports LC Fiber Distribution Panel
1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel

大画像 :  1U 19-inch 96 Ports LC Fiber Distribution Panel

商品の詳細:
起源の場所: 中国
ブランド名: Unifiber or OEM
証明: ROHS
モデル番号: 96 ポート LC ファイバー分配パネル
お支払配送条件:
最小注文数量: 10
価格: 交渉可能
パッケージの詳細: カートンボックス
受渡し時間: 3~5日
支払条件: LC、T/T
供給の能力: 100個/日
詳細製品概要
製品: 1U 19 インチ 96 ポート LC ファイバー分配パネル いいえ港の: 96の港
アダプターの種類: デュプレックスLC トレイ数: 2
トレイ容量: 48コア 材料: 冷間圧延鋼材
色:
ハイライト:

1U 19-inch fiber distribution panel

,

96 ports LC fiber patch panel

,

rack mount fiber optic panel

1U 19-inch 96 Ports LC Fiber Distribution Panel

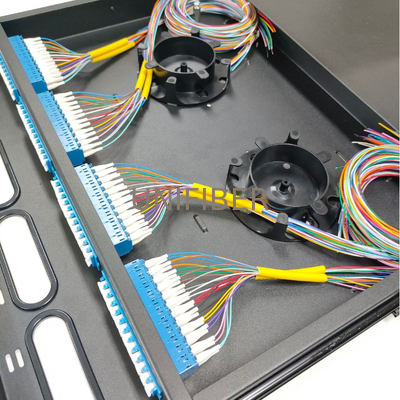

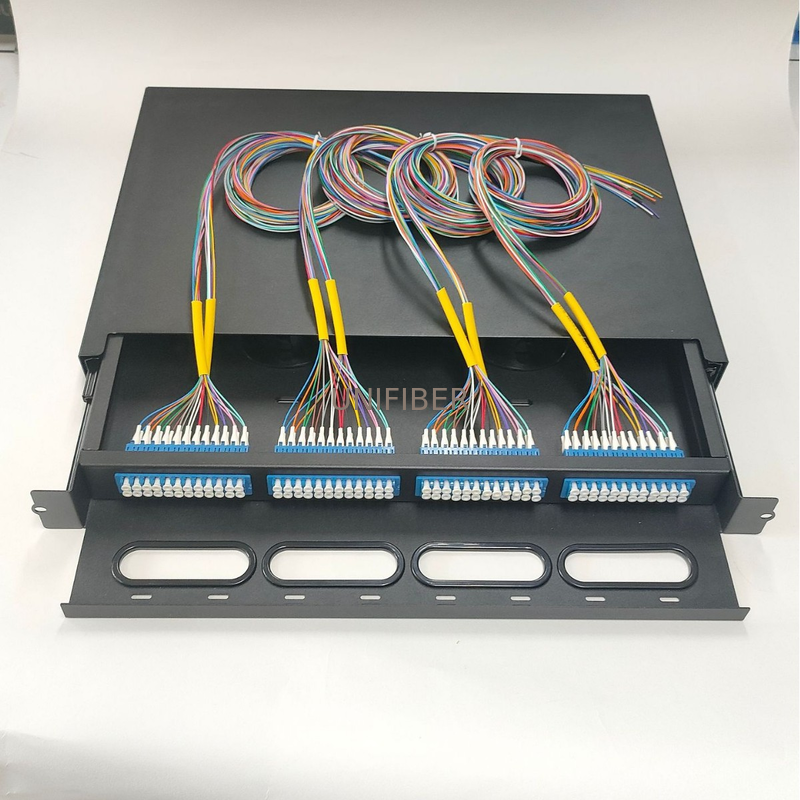

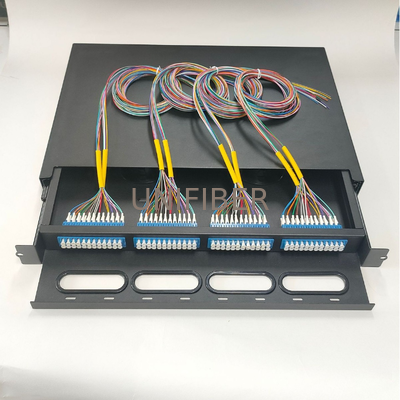

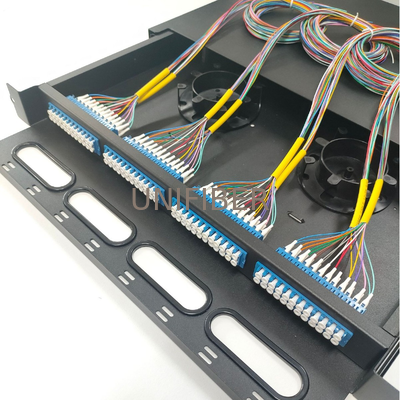

This 1U 96 Port HD Fiber Optic Patch Panel supports 4 interchangeable adapter modules for LC or SC connectors. It can accommodate fiber splicing for up to 96 fibers with 2x 48F splicing trays and also supports 4x MPO/MTP cassette modules. This panel provides an ideal high-density cable management solution for modern data center environments.
Applications
  • Data Center Infrastructure
  • Fiber Channel Networks
  • Storage Area Networks
  • Emerging 40G and 100Gbps Protocols (Compatible)
Key Features
  • Supports MPO/MTP cassette modules for high-density applications
  • Accommodates up to 96 single fiber splices
  • Includes 2 splice trays, each supporting 48 fiber splices
  • Features 4 separate interchangeable adapter plates
  • Standard unit structure compatible with various cabinets and racks
  • Multiple optical cable entry points with enlarged inlets for easy cable routing
  • Secure cable fixation using optical cable fixing columns or metal reinforcements
Technical Specifications
Model Number 1U 96 Port HD Fiber Optic Patch Panel
Max Capacity 96 Ports
Cassettes Compatible 4x 24 adapter module
Connector Type Duplex LC, SC or MPO/MTP
Pre-Connection Optional
Material SPCC (Cold Rolled Steel Sheet)
Finishing Powder Coated Matt Black
Dimension (mm) 482.6*363.2*1U/2U
Operation Temperature -20℃ ~ 70℃
1U 19-inch 96 Ports LC Fiber Distribution Panel 0
