商品の詳細:
お支払配送条件:
|
| 製品: | FTTXの光ファイバーケーブル | ケーブルの直径: | 3.0mm丸 |
|---|---|---|---|
| ファイバーの種類: | G657A2 | ジャケット: | LSZH |
| アプリケーション: | fttx | ||
| ハイライト: | 3.0mm round fiber optic cable,indoor outdoor optical fiber drop cable,G657A2 LSZH jacket fiber cable |
||

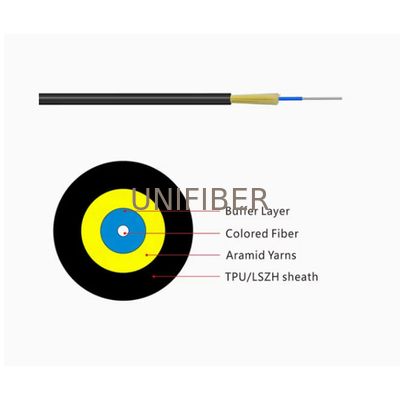

| Item | Technical parameter |
|---|---|
| Fiber type | 9/125 G657A2 |
| Tight buffer color | White (or Depend on customer's request) |
| Tight buffer diameter (mm) | 0.85±0.05 |
| Strength member | Aramid yarns |
| Jacket color | Black (or Depend on customer's request) |
| Jacket material | TPU or LSZH |
| Jacket thickness (mm) | 0.7±0.1mm |
| Cable diameter (mm) | 3.0±0.1 |
| Cable weight (kg/km) | 7.8±10% |
| Min. bending radius (mm) | (Static) 10 times of the cable shorter diameter (Dynamic) 20 times of the cable shorter diameter |
| Attenuation (dB/km) | ≤ 0.4 at 1310nm, ≤ 0.3 at 1550nm |
| Long/Short term tensile (N) | 300/500 |
| Long/Short crush resistance (N/100 mm) | 200/1000 |
| Operation temperature (ºC) | -20~+70 |
